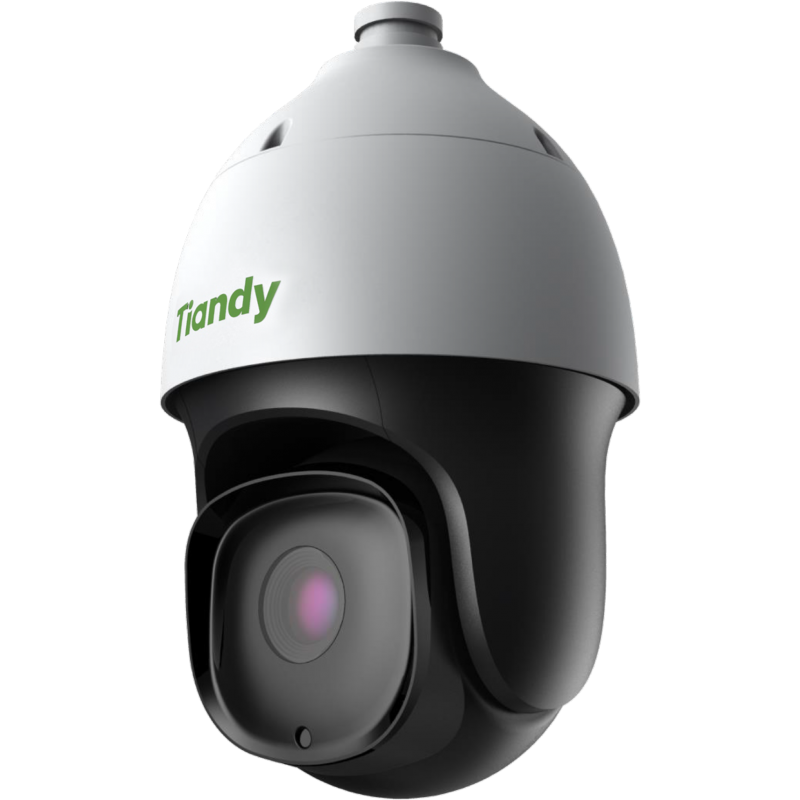

TC-NH6233I
Telecamera Videosorveglianza Dome PTZ (Pan/Tilt/Zoom) da esterno/interno con risoluzione 2MP 1080P, ottica varifocale 4.6-152mm (Zoom ottico 33x) e sensore d'immagine 1/2.8" Sony Progressive Scan CMOS con tecnologia Starlight. Triplo stream, Video Analisi, slot per MicroSD e illuminatore IR con 10 Leds. Allarme, Audio. Protetta da sovraccarico/fulmini.TC-NH6233I
TC-NH6233I
- Telecamera PTZ da esterno/interno
- Risoluzione 2Megapixel 1080P (1920x1080)
- Ottica Varifocale 4.6-152mm (Zoom ottico 33x), Angolo di Visione: 62.1°/(w)~2.18°(t)
- Sensore d'immagine1/2.8" Sony Progressive Scan CMOS con tecnologia Starlight
- Tecnologia Starlight: Visione a colori anche in notturna
- Video Compressione H.265 / H.264
- Triplo Stream
- Illuminatore Smart IR con 10leds (180m~200m)
- Video Analisi: Attraversamento linea/Perimetro/Loitering/Folla/Rilevamento Parcheggio/ Oggetti persi&abbandonati/Rilevamento Volto
- Allarme intelligente:
- Day/Night (Dual-ICR), WDR(140dB), 3D DNR, HLC, AWB, AGC, BLC
- NIR (Near-IR)
- Smart Defog
- Compatibile Onvif
- Slot per MicroSD Card (Max 128GB)
- Protezione IP66 (pioggia/polvere)
- Protezione da sovraccarichi/fulmini
- Lingue: Inglese, Spagnolo, Coreano, Italiano, Turco, Thai, Russo, Cinese tradizionale
- Certificazioni: CE,FCC
- Dimensioni: 222mmx222mmx372mm
Scheda tecnica
- Image Sensor
- 1/2.8" Sony Progressive Scan CMOS
- Min. Illumination
- Color:0.002Lux @ (F1.6,50 IRE,ICR OFF) / Black&White:0.001Lux @(F1.6,50 IRE,ICR ON) 0 Lux with IR
- Lens
- 4.6-152mm, 33x
- Wide Dynamic Range
- 140dB
- Video Compression
- H.265/H.264 High Profile/MJPEG
- Max. Image Resolution
- 1920x1080
- Triple Stream
- Main: 1920×1080@25/30fps; 1280×960@25/30fps; 1280×720@25/30fps;1280×720@50/60fps 704×576@25/30fps;704×480@50/60fps / Sub: 704×576@25fps/704×480@30fps 352×288@25fps/352×240@30fps 176×144@25fps/176×120@30fps / Third: 352×288@25fps/352×240@30fps
- Smart Defog
- Yes
- Video Analytics
- Tripwire, Perimeter, Loitering/Crowd/Parking Detection, Missing/Foreign Object, Face Detection
- Intelligent Alarm
- Harsh Voice Alarm, Motion Ddetection, Mask Alarm, Port Alarm,Network Disable Alarm, IP Conflict, MAC Conflict Detection,unusual image, scene changing, mic offline.
- Audio Input
- 1-ch Mic in(Line in Interface) Line Input 2-2.4V[p-p]; Output Impedance 1KΩ, ±10%
- Audio Output
- 1-ch, Line level, Impendance: 600Ω
- Alarm Input
- 1-ch
- Alarm Output
- 1-ch
- On-board Storage
- Micro SD Slot, up to 128GB
- Power Supply
- AC24V 3A
- Circuit Protection
- TVS 6000V, Lightning/ Surge 4000V Protection
- Impact Protection
- IP66
- IR Range
- 180m~200m
- Dimensions
- 222mmx222mmx372mm
- Weight
- 5KG (IP PTZ Only), 8.45KG (with Packing Box)
- Tipologia
- PTZ
- ONVIF
- Onvif(Profile S)
