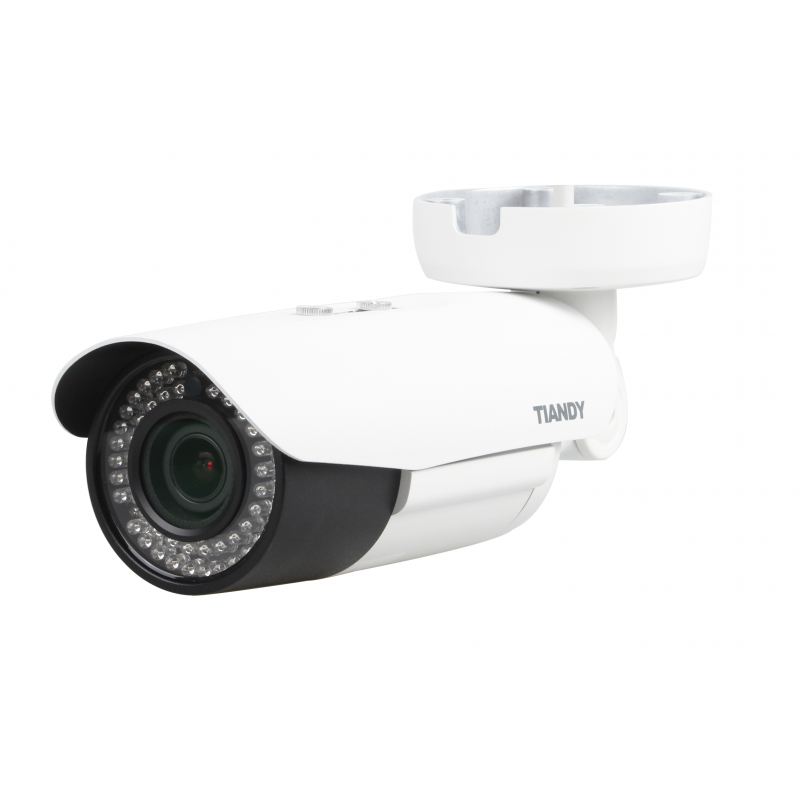

TC-NC23MS

Telecamera Videosorveglianza IP Bullet Starlight da esterno/interno con risoluzione 2MP 1080P e ottica varifocale motorizzata 2.8-12mm. Triplo stream, Video Analisi, Audio, Allarme, slot per MicroSD e illuminatore IR con 54leds. Protetta da sovraccarico/fulmini. Protocollo PoE. TC-NC23MS

TC-NC23MS

- Telecamera IP Bullet da esterno/interno
- Risoluzione 2Megapixel 1080P (1920x1080)
- Ottica Varifocale Motorizzata 2.8-12mm (92°～38.6°)
- Sensore d'immagine 1/2.8" Sony Starvis Exmor CMOS con tecnologia Starlight
- Tecnologia Starlight: Visione a colori anche in notturna
- Video compressione H.265 / H.264
- Triplo Stream
- Illuminatore Smart IR con 54 leds (30-50metri)
- Video Analisi: Attraversamento linea, Doppio attraversamento, Perimetro, Oggetti abbandonati/Persi, Corsa, Loitering, Parcheggio, Folla, Anomalia audio, Anomalia video
- Day/Night (Dual-ICR), WDR, 3D DNR, HLC, AWB, AGC, BLC
- Smart Defog
- Modalità corridoio
- ROI (Region of interest)
- EIS (Electronic Image Stabilization)
- NIR (Near-IR)
- Audio: 1 Ingresso + 1 Uscita
- Allarme: 2 Ingressi + 1 Uscita
- Compatibile Onvif
- Slot per MicroSD Card (Max 128GB)
- Protezione IP67 (polveri/immersione)
- Protezione da sovraccarichi/fulmini
- Bottone Reset
- Lingue: Inglese, Spagnolo, Coreano, Italiano, Turco, Thai, Russo, Cinese tradizionale
- Protocollo PoE
- Certificazioni: CE,FCC
- Dimensioni: 337mm×107mm×107mm

Scheda tecnica

Image Sensor: 1/2.8" Sony Starvis Exmor CMOS
Min. Illumination: Color: 0.002Lux(F1.2,AGC ON) / B/W: 0.001Lux(F1.2,AGC ON); 0Lux with IR
Lens: Motorized 2.8-12mm, Angle of View: 92°～38.6°
Wide Dynamic Range: 140dB
Focus: Auto
Video Compression: H.265/H.264 HP/MP/BP/M-JPEG
Max. Image Resolution: 1920x1080
Frame Rate: 50Hz: 25fps(1920×1080), 25fps(1280×960), 25fps(1280×720), Up to 1280*720@50fps
Triple Stream: Mainstream: 1080P(1920*1080) / Substream: D1(704*576) / 3rd stream: 720P(1280*720)
Smart Defog: Yes
Corridor Format: Y, Available for 720P and Above
ANR: Y, Auto store video in SD card when NVR disconnected, and upload video to NVR when resumed connection(Only Support Tiandy ANR NVR)
Video Analytics: Tripwire/Double Tripwire/Perimeter/Object Abandon/Object Lost/Running/Loitering/Parking/Crowd/Audio Abnormal Detection/Video Abnormal Detection
System Compatibility: ONVIF (Profile S), SDK
Audio Input: 1-ch
Audio Output: 1-ch
Alarm Input: 2-ch
Alarm Output: 1-ch
Video Output: 1Vp-p Composite Output(75Ω/BNC, for Internal Setup)
On-board Storage: Micro SD Slot, up to 128GB
Extension: 1x USB
Power Supply: DC12 V +/- 10%, POE (802.3af)
Circuit Protection: TVS6000V, Lightning/Surge Protection: (Power 2000V, RJ45 1000V)
Impact Protection: IP67
IR Range: 30m-50m
Dimensions: 337mmx107mmx107mm
Weight: 1.3KG (IP Camera Only); 1.6KG (with Packaging Box)
