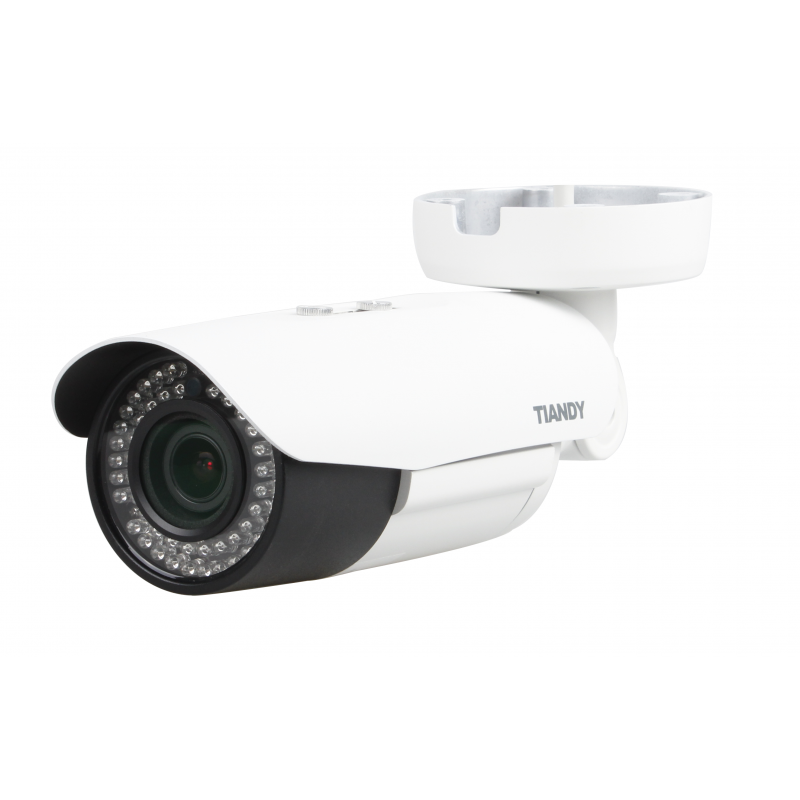

TC-NC43M
Telecamera Videosorveglianza IP Bullet da esterno/interno con risoluzione 4MP e ottica varifocale motorizzata 2.8-12mm. Triplo stream, Video Analisi, Audio, Allarme, slot per MicroSD e illuminatore IR con 54leds. Protetta da sovraccarico/fulmini. Protocollo PoE. TC-NC43M
TC-NC43M
- Telecamera IP Bullet da esterno/interno
- Risoluzione 4Megapixel (2560*1440)
- Ottica Varifocale Motorizzata 2.8-12mm (90.8°~32.1°)
- Sensore d'immagine 1/3" OV CMOS
- Triplo Stream
- Illuminatore Smart IR con 54 leds (30-50metri)
- Video Analisi: Attraversamento Linea/Perimetro/Folla/Oggetti abbandonati/Oggetti persi/Movimenti veloci/Loitering/Parcheggio/Mutamento scenario/Sfarfallio Immagine/Anomalia Audio
- Day/Night (Dual-ICR), WDR (120dB), 3D DNR, HLC, AWB, AGC, BLC
- Smart Defog
- Modalità corridoio
- ROI (Region of interest)
- EIS (Electronic Image Stabilization)
- NIR (Near-IR)
- Audio: 1 Ingresso + 1 Uscita
- Allarme: 2 Ingressi + 1 Uscita
- Compatibile Onvif
- Slot per MicroSD Card (Max 128GB)
- Protezione IP67 (polveri/immersione)
- Protezione da sovraccarichi/fulmini
- Bottone Reset
- Lingue: Inglese, Spagnolo, Coreano, Italiano, Turco, Thai, Russo, Cinese tradizionale, Polacco, Francese
- Protocollo PoE
- Certificazioni: CE,FCC
- Dimensioni: 337mm×107mm×107mm
Scheda tecnica
- Image Sensor
- 1/3" OV CMOS
- Min. Illumination
- Color: 0.05Lux(F1.4,AGC ON) / B/W: 0.01Lux(F1.4,AGC ON); 0Lux with IR
- Lens
- Motorized 2.8-12mm, Angle of View: 90.8°~32.1°
- Wide Dynamic Range
- 120 dB
- Focus
- Auto
- Video Compression
- H.265/H.264 HP/MP/BP/M-JPEG
- Max. Image Resolution
- 1440P(2560×1440)
- Frame Rate
- 1440p@25fps, QXGA@25fps, 1080p@25fps, 960p@25fps, 720p@25fps, Up to 1280*720@50fps
- Triple Stream
- Mainstream: 1440P(2560×1440) / Substream: D1(704×576) / 3rd Stream: CIF(352×288)
- Smart Defog
- Yes
- Corridor Format
- Y, Available for 720P and Above
- ANR
- Y, Auto store video in SD card when NVR disconnected, and upload video to NVR when resumed connection(Only Support Tiandy ANR NVR)
- Video Analytics
- Tripwire/Perimeter/Crowd/Foreign Oject/Missing Oject/Fast Moving/Loitering/Parking/Scene Change/Blur Image/Abnormal Audio
- System Compatibility
- ONVIF (Profile S), SDK, CGI
- Audio Input
- 1-ch
- Audio Output
- 1-ch
- Alarm Input
- 2-ch
- Alarm Output
- 1-ch
- Video Output
- 1-ch Vp-p Composite Output (75 Ω, BNC)
- On-board Storage
- Micro SD Slot, up to 128GB
- Extension
- 1x USB
- Power Supply
- DC12 V ± 20%, PoE (802.3af)
- Circuit Protection
- TVS6000V, Lightning/Surge Protection: (Power 2000V, RJ45 1000V)
- Impact Protection
- IP67
- IR Range
- 30m-50m
- Dimensions
- 337mmx107mmx107mm
- Weight
- 1.3KG (IP Camera Only); 1.6KG (with Packaging Box)
