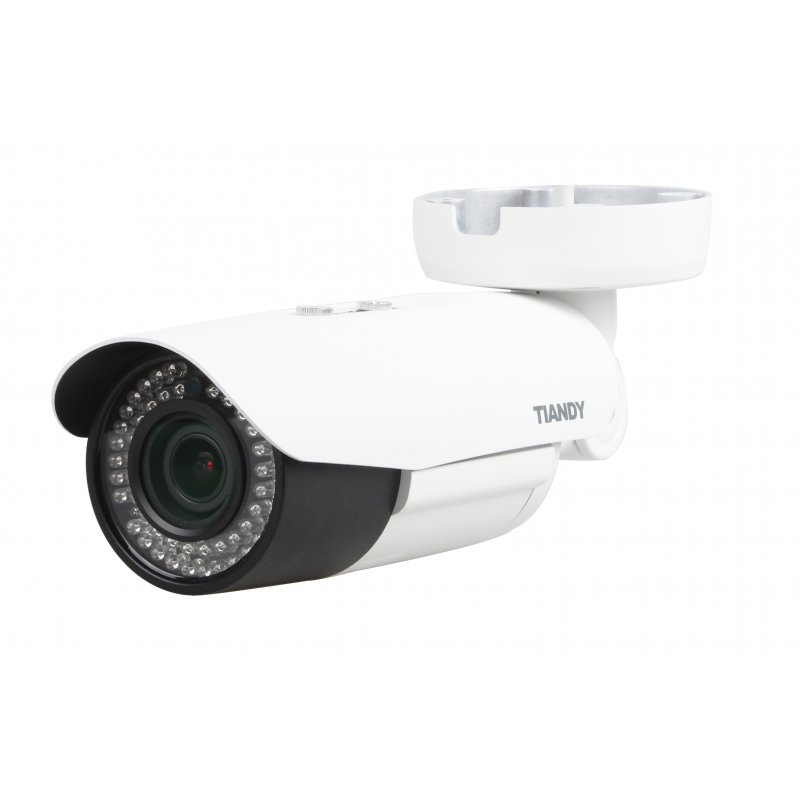

TC-NC23V

Telecamera Videosorveglianza IP Bullet da esterno/interno con risoluzione 2MP 1080P e ottica varifocale 2.8-12mm. Triplo stream, Video Analisi, Audio, Allarme, slot per MicroSD e illuminatore IR con 54leds. Protetta da sovraccarico/fulmini. Protocollo PoETC-NC23V

VCA Video Content Analysis3rd Stream TriploSlot per MicroSDSmart IRANRWDR 100dBCorridor ModeEISROISmart DefogTVSPoE

  TC-NC23V

- Telecamera IP Bullet da esterno/interno
- Risoluzione 2Megapixel 1080P (1920x1080)
- Ottica Varifocale 2.8-12mm (88.1°-31.2°)
- Sensore d'immagine 1/2.8" Sony Exmor CMOS
- Triplo Stream
- Illuminatore Smart IR con 54 leds (30-50metri)
- Video Analisi: Attraversamento linea / Perimetro
- Day/Night (Dual-ICR), WDR, 3D DNR, HLC, AWB, AGC, BLC
- Smart Defog
- Day/Night (ICR)
- Modalità corridoio
- ROI (Region of interest)
- EIS (Electronic Image Stabilization)
- NIR (Near-IR)
- Audio: 1 Ingresso + 1 Uscita
- Allarme: 1 Ingresso
- Compatibile Onvif
- Slot per MicroSD Card (Max 128GB)
- Protezione IP67 (polveri/immersione)
- Protezione da sovraccarichi/fulmini
- Bottone Reset
- Lingue: Inglese, Spagnolo, Coreano, Italiano, Turco, Thai, Russo, Cinese tradizionale
- Protocollo PoE
- Certificazioni: CE,FCC
- Dimensioni: 337mmx107mmx107mm

Scheda tecnica

Image Sensor
1/2.8" Sony Exmor CMOS
Min. Illumination
Color: 0.05 Lux @(F1.2, AGC ON) / B/W: 0.01Lux @(F1.2, AGC ON); 0 Lux with IR
Lens
2.8-12mm, Angle of View: 88.1°-31.2°
Wide Dynamic Range
100 dB
Focus
Manual
Video Compression
H.264/M-JPEG
Max. Image Resolution
1920x1080
Frame Rate
50Hz: 25fps (1920x1080), 25fps (1280x720)
Triple Stream
Mainstream: 1080P (1920x1080) / Substream: D1 (704x576) / 3rd stream: CIF (352x288)
Smart Defog
Yes
Corridor Format
Yes (Only for 1080P)
ANR
Y, Auto store video in SD card when NVR disconnected, and upload video to NVR when resumed connection(Only Support Tiandy ANR NVR)
Video Analytics
Tripwire/Perimeter
System Compatibility
ONVIF (Profile S), SDK, CGI
Audio Input
1-ch
Audio Output
1-ch
Alarm Input
1-ch
Alarm Output
N/A
Video Output
N/A
On-board Storage
Micro SD Slot, up to 128GB
Extension
1x USB
Power Supply
DC12 V +/- 10%, POE (802.3af)
Circuit Protection
TVS6000V, Lightning/Surge Protection: (Power 2000V, RJ45 1000V)
Impact Protection
IP67
IR Range
30m-50m
Dimensions
337mmx107mmx107mm
Weight
1.3KG (IP Camera Only); 1.6KG (with Packaging Box)

Scarica

TC-NC23V

Scarica (315.4k)
